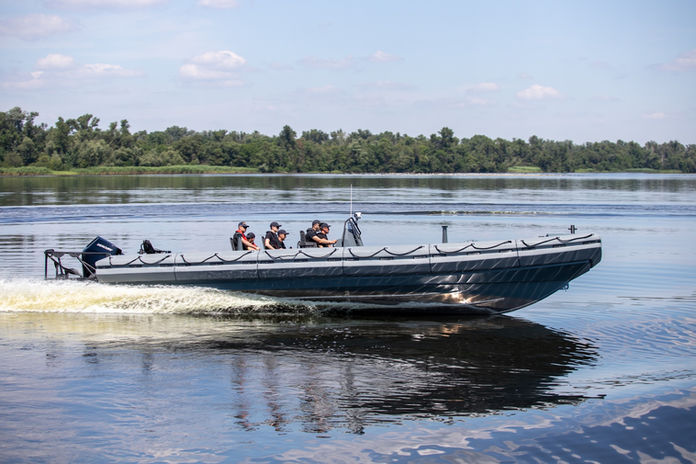

GALAXY TRIDENT T12

D-COLLAR

MULTI-PURPOSE & LIGHTWEIGHT

Galaxy Trident T12 is the largest platform in the Trident range. It is a heavy-duty, commercially built RIB workboat engineered for extended operations in defence, enforcement, offshore support, and high-capacity passenger transport. With increased deck length and volume, it offers enhanced space for crew and equipment, making it ideal for crew transfer, sea safari, and commercial charter. The removable D-collar system maximises internal space and simplifies maintenance, with a solid foam collar option available for high-durability requirements. Its soft-riding deep-vee aluminium hull, combined with shock mitigation seating, delivers exceptional comfort and control in rough conditions. Built from circular and fully recyclable marine-grade aluminium and featuring a modular deck track system, the Trident T12 can be configured to suit a wide range of professional applications, with both micro and full cabin options available.

Spec

SPECIFICATIONS

Total Length

1160 cm / 38′ 1”

Cockpit Length

880 cm / 28′ 10”

Overall Width

320 cm / 10′ 6”

Cockpit Width

220 cm / 7′ 3”

Tube Diameter Max

62 cm / 24,4”

Weight of the Vessel

2600 kg / 5720 lbs

Cargo Carrying Capacity

2800 kg / 6180 lbs

Passenger Capacity

18

Number of Compartments in Tubes

7 / –

Recommended Engine Power

800 HP / 588,4 kW

Maximum Engine Power

900 HP / 661,9 kW

Maximum Motor Weight

1000 kg / 2200 lbs

Motor Leg Length

2×30″

Fuel Tank Capacity

1350 L

Material of D-Collar: Hypalon Inflatable / TPU Foam

Material of Tubes

Hull Material

Aluminum Hull RIB

Aluminum Sheet Thickness (side / bottom)

6mm

Boat Design Category

C, B


Inflatable D-shaped tubes are ideal for rescue equipment and boats due to their lightness and compactness. D-shaped tubes have a round profile for even pressure distribution. They provide high buoyancy and improved stability on the water. Inflatable tubes are made from durable materials such as PVC or Hypalon.

D-shaped foam tubes offer additional strength and durability due to their resistance to mechanical damage. D-shaped tubes have a flat inner side and a pounded outer side. This shape allows for more efficient use of space and provides greater stability. The protective coating prevents exposure to UV rays and chemicals, making these tubes ideal for use in extreme conditions.


Circular recyclable


D-Tube


Offshore commercial deep vee hull


High gunwale walls for safety


Aluminum hull, tough & repairable world-wide


Shock mitigation options

T12  PAGE.jpg
