MULTI-PURPOSE & LIGHTWEIGHT

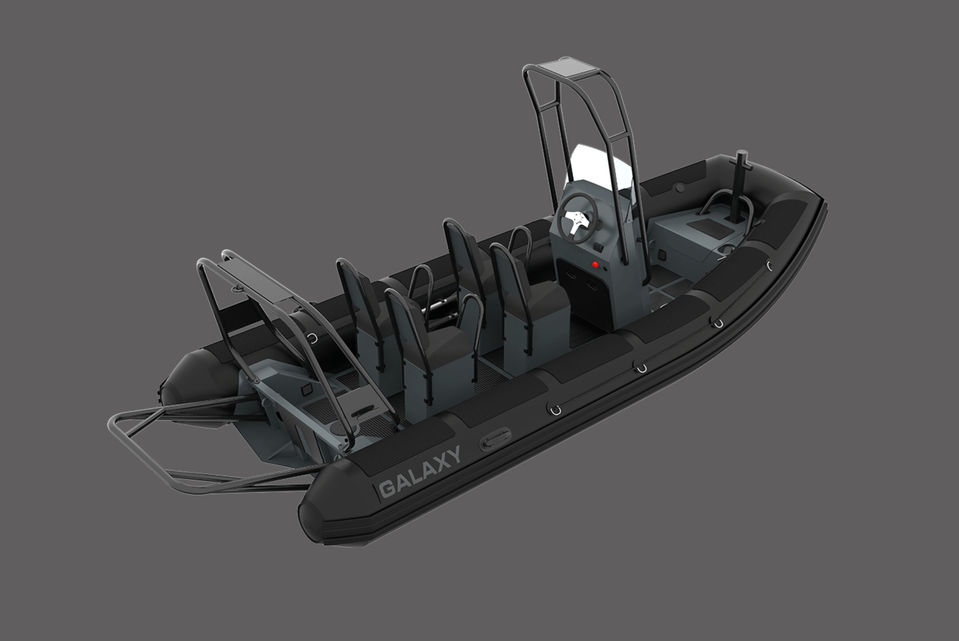

Galaxy PILOT 5.0 is a heavy-duty, commercially built RIB workboat, offering greater
internal space than its sister craft, the 4.5. Designed as a versatile platform for a wide range of operations, from sailing club rescue through to patrol, commercial, law enforcement, and emergency response applications, it delivers strength,
seaworthiness, and reliability. Built with a deep-vee aluminium hull and Hypalon fabric tubes for exceptional durability, the PILOT 5.0 offers a varied internal layout with console variations and is custom built to meet your specific operational requirements.
SPECIFICATIONS
Total Length
500 cm / 16′ 5”
Cockpit Length
410 cm / 13' 5"”
Overall Width
215 cm / 7′ 1”
Cockpit Width
111 cm / 3′ 8”
Tube Diameter Max
52 cm / 20,5”
Weight of the Vessel
320 kg / 704 lbs
Cargo Carrying Capacity
840 kg / 1848 lbs
Passenger Capacity
8
Number of Compartments in Tubes
5
Recommended Engine Power
70 HP / 51,5 kW
Maximum Engine Power
100 HP / 73,5 kW
Maximum Motor Weight
180 kg / 396 lbs
Motor Leg Length
20″
Fuel Tank Capacity
83 L
Material of Tubes
HYPALON
Hull Material
Aluminum Hull RIB
Aluminum Sheet Thickness (side / bottom)
5mm
Boat Design Category
C
Circular recyclable
Hypalon tubes
Offshore commercial deep vee hull
Aluminum hull, tough & repairable world-wide
Customised
to your requirements
