GALAXY PILOT P7

HYPALON TUBES

MULTI-PURPOSE & LIGHTWEIGHT

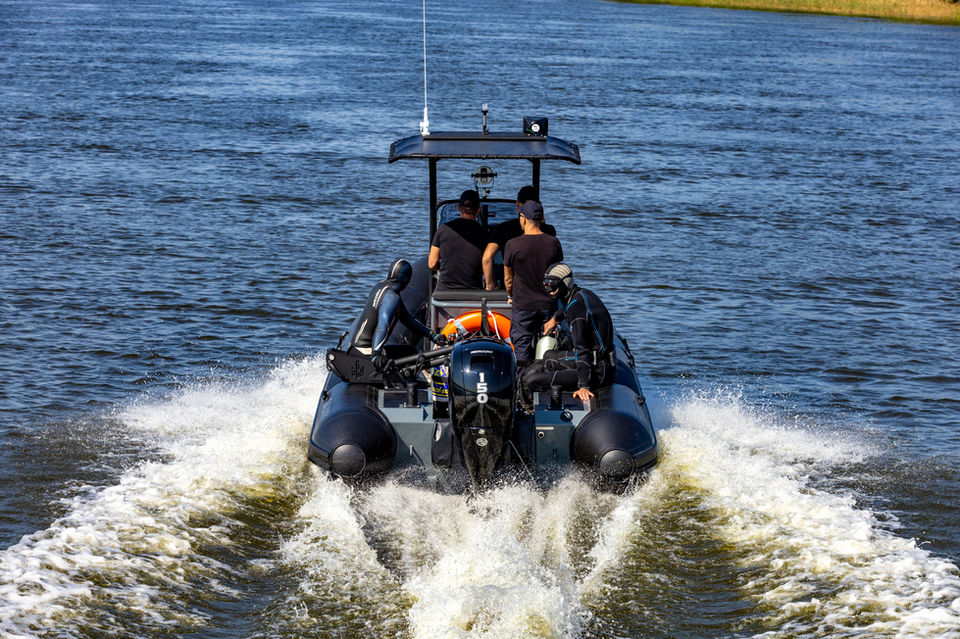

Galaxy PILOT 7.0 is a robust, commercially built RIB workboat designed for professional operators who demand performance, durability, and adaptability. Offering an expansive deck and increased payload capacity, it is ideal for patrol, rescue, law enforcement, and commercial support roles. The deep-vee aluminium hull ensures a stable, dry, and fuel-efficient ride, while Hypalon inflatable tubes provide long-lasting resilience. Highly configurable with a range of internal layouts and console options, the PILOT 7.0 is easy to launch and recover, enabling flexible deployment across diverse operational environments.

Spec

SPECIFICATIONS

Total Length

695 cm / 22′ 10”

Cockpit Length

510 cm / 16′ 9”

Overall Width

280 cm / 9′ 2”

Cockpit Width

160 cm / 5′ 3”

Tube Diameter Max

60 cm / 23,6”

Weight of the Vessel

800 kg / 1760 lbs

Cargo Carrying Capacity

1900 kg / 4180 lbs

Passenger Capacity

13

Number of Compartments in Tubes

5

Recommended Engine Power

200 HP / 147,1 kW

Maximum Engine Power

300 HP / 220,6 kW

Maximum Motor Weight

400 kg / 880 lbs

Motor Leg Length

30″ / 2×25″

Fuel Tank Capacity

300 L

Material of Tubes

HYPALON

Hull Material

Aluminum Hull RIB

Aluminum Sheet Thickness (side / bottom)

5mm

Boat Design Category

C


Circular recyclable

Hypalon Tube.png

Hypalon tubes


Offshore commercial deep vee hull


Aluminum hull, tough & repairable world-wide


Customised
to your requirements

PILOT P7 BBG.jpg

ENQUIRE NOW

Use the form to get in touch with the GALAXY Commercial boats UK team in regards to a specific model. Or contact us using the details below.

The Wolf Rock Boat Company Unit 1G, South Hams Business Park Churchstow, Kingsbridge TQ7 3Q. U.K.

01548 855751
